Main Applications:
- Apparel hang tags and other volume retail
- Asset management
- Enterprise Wide Asset Management
- Warehouse Management
- Tracking Challenging Materials and Objects
- Shipping Labels
- File folder labels
- Pallet cards/ Corrugate cases
RFID inlay/Label are particularly designed for item tracking and management, as they are durable, flexible, abrasion resistant, solvent resistant, and have great read/write performance.
Our RFID labels can be custom made and programmed to match your system and are available with your logo and message.With the ability to withstand outdoor weather, harsh environments, and high impact, our RFID tags will benefit you most from difficult applications. Orders for blank, pre-printed, or pre-encoded tags are all available.

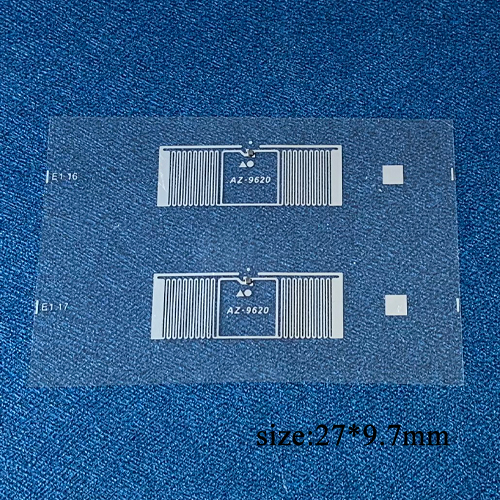

ALIEN HIGGS3 9620 RFID Wet Inlay Spec
|
9620 Antenna size |
27mm×9.7mm |
||
|
9620 Finished size |
31mm×14.7mm |
||
|
Chip |
Alien Higgs3, H3 |
||
|
Protocol |
ISO/IEC 18000-6C,EPC Class1 Gen2 |
||
|
Working frequency |
860~960MHz |
||
|
Working mode |
Passive |
||
|
IC Life |
100,000 Programming cycles, IC Life 10years data retention |
||
|
Memory |
EPC |
96bits |
Read &write |
|
TID |
32bits |
Read Only |
|
|
Unique TID |
64bits |
Read Only |
|
|
Password area |
32bits Access password 32bits Destroy password |
Read &write |
|
|
Users area |
512bits |
Read &write |
|
|
Environmental requirements |
Operating temperature / humidity |
-40~70℃/20%~90% RH |
|
|
Storage temperature / humidity |
-25~70℃/20%~90% RH |
||
|
Product shelf life |
20~30℃/20%~90%RH Under the conditions of use of anti-static bag,sealed and stored for 1 years. |
||
|
Identification distance |
About 2M (different reader read-write distance will vary) |
||
